Count on Matrix exclusive Suspension Elliptical™ Technology and PerfectStride® Motion for an exceptionally smooth, ultra-comfortable exercise experience as you adjust incline to target the muscles you want to work most.

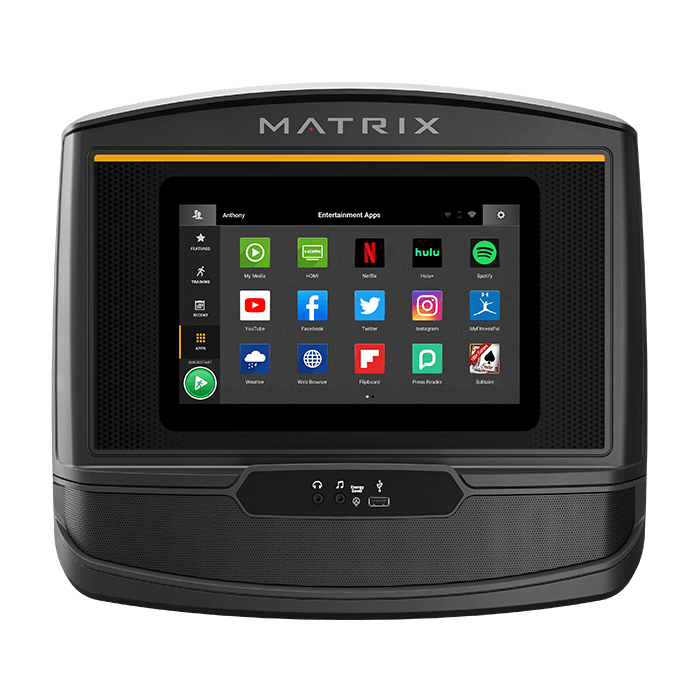

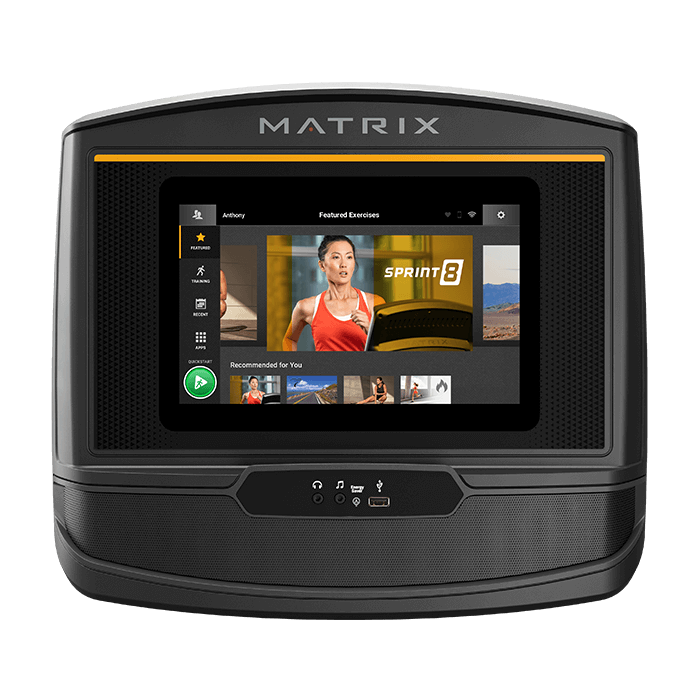

Matrix XER console includes a clear 10" touchscreen display and an intuitive home screen that offers easy access to entertainment. WiFi and Bluetooth available.
A Johnson Fitness exclusive, Sprint 8 can help you trim fat, tone muscles and boost energy. Some users experienced a 27% body-fat loss in just 8 weeks without changing their diets. These remarkable results are possible because Sprint 8 is a remarkable approach.
The ViaFit connectivity system sends your home workouts to the fitness apps and tools you already use and shares them with the communities where you already belong.
Bring an immersive workout experience to your home with high-definition destination footage displayed on your machine’s large touchscreen console and synced to the speed and intensity of your workout. Consoles come preloaded with two destination courses: Northern Rockies and the American Northeast.
Our unique suspension elliptical design with PerfectStride® motion eliminates surges and dead spots so you move more smoothly, burn more calories and get better results.
|Parts & Brake||7 Years|
|Console||Parts: 5 Years / Labor: 1 Year|
|WIFI ENABLED||ViaFit Connectivity, entertainment apps|
|BLUETOOTH ENABLED||Connect to popular training and coaching apps; connect wireless headphones; connect wireless heart rate monitor|
|CONSOLE APPS||My Media, HDMI, Netflix, Hulu, Spotify, YouTube, Facebook, Twitter, Instagram, MyFitnessPal, Weather, Web Browser, Flipbook, Press Reader, Solitaire Suite, WeChat, YouKu, Weibo, Iqiyi, NetEase (other apps vary by market)|
|HEART RATE||Bluetooth wireless heart rate, Bluetooth heart rate strap included|
|CONSOLE EXTRAS||Integrated reading rack, energy saver mode, audio in/out|
|WORKOUTS||12 total — manual, intervals, constant watts, time goal, distnace goal, calorie goal, target heart rate, Sprint 8, Virtual Active American Northeast, Virtual Active Northern Rockies, iFit, custom|
|DISPLAY FEEDBACK||Time elapsed, time goal, time remaining, clock, miles / kilometers, RPM, current speed (MPH/KPH), pace, average pace, heart rate, peak heart rate, calories, calories per hour, METS, incline, previous incline, resistance, previous resistance|
|Frame Type||Ascent Trainer|
|Flywheel Weight||13.5 kg / 30 lbs.|
|Stride Length (inches)||20" - 24"|
|Step on Height||8.7"|
|Incline Range||24% - 54%|
|Resistance Range||20 levels, electronically adjustable|
|Resistance System||ECB magnetic braking system|
|Pedal Spacing||6.5 cm / 2.6”|
|Handlebar Design||Dual action, stationary with resistance / incline toggles and heart rate grips|
|Extras||Water bottle holder, accessory tray|
|Assembled Weight||142 kg / 313 lbs.|
|Dimensions||191 x 73 x 164 cm / 75.2” x 29” x 65”|
|Max User Weight (lbs)||159 kg / 350 lbs.|
|Power Requirements||120 V AC power, 15 A circuit (voltage may vary outside the USA)|
